Testing plastic material is the foundation for designing safe, reliable, and high‑performance products, especially when using customized compounds and functional Masterbatch formulations for demanding applications. A systematic testing strategy helps you verify that each plastic and Masterbatch combination meets mechanical, thermal, chemical, color, and processing requirements before full‑scale production.[1][4]
Plastic material testing is a set of standardized methods used to measure the mechanical, thermal, chemical, optical, and processing properties of polymers and their Masterbatch‑modified grades. By testing both base resin and Masterbatch‑containing formulations, you can ensure the final material consistently matches your design specifications and end‑use conditions.[9][11]
In a modern plastics lab, testing is aligned with global standards such as ASTM and ISO, which define sample preparation, test conditions, and data interpretation. This is particularly important for customized Masterbatch systems, where small formulation changes can noticeably impact tensile strength, impact resistance, heat stability, and color performance.[13][1]
A structured, stepwise approach ensures that every critical property of your plastic and Masterbatch compound is validated before market launch.[9]
1. Define application and performance targets
- Clarify operating temperature, load, environment (UV, chemicals, moisture), lifespan, and regulatory requirements.[9]
- Determine Masterbatch functions needed: color Masterbatch, UV stabilizer Masterbatch, flame‑retardant Masterbatch, conductivity Masterbatch, slip/antiblock Masterbatch, etc.[11]
2. Select candidate resins and Masterbatch formulations
- Choose base polymers (PE, PP, PET, PA, PC, ABS, etc.) suitable for the application, then design Masterbatch to fine‑tune properties.[11]
- Evaluate let‑down ratio (LDR) of Masterbatch in the final compound to balance performance, dispersion, and cost.[13]
3. Prepare test specimens
- Compound base resin with the selected Masterbatch on an extruder or injection molding machine at controlled processing conditions.[3]
- Mold or cut standardized specimens (e.g., dog‑bone for tensile, bars for flexural and impact) to meet ASTM or ISO dimensional requirements.[1]
4. Run mechanical and physical tests
- Perform tensile, flexural, impact, hardness, and density tests to validate the structural performance of the Masterbatch‑modified plastic.[2]
- Compare results with target specifications, adjusting Masterbatch formulation or loading when necessary.[4]
5. Conduct thermal, chemical, and aging tests
- Measure heat resistance, softening point, dimensional stability, and long‑term aging behavior of the material under realistic conditions.[2]
- Use specialized Masterbatch additives for heat stabilization, antioxidant performance, and chemical resistance, then confirm their effectiveness via testing.[11]
6. Validate processing and color stability
- Assess melt flow, rheology, color consistency, and dispersion quality during actual processing (extrusion, injection, blow molding, film casting).[4]
- Optimize Masterbatch carrier, pigment selection, and dispersion technology to avoid defects such as color streaks, gels, and black spots.[9]
7. Document data and release specification
- Translate all measured properties into a formal material data sheet that includes resin grade, Masterbatch type, LDR, and key test values.[11]
- Use this document as the technical foundation for quality control, incoming inspection, and customer communication.[13]
Mechanical tests show how a plastic material reinforced or modified with Masterbatch behaves under different loads and conditions. These tests are especially important when developing structural parts, functional films, or durable consumer products.[2]

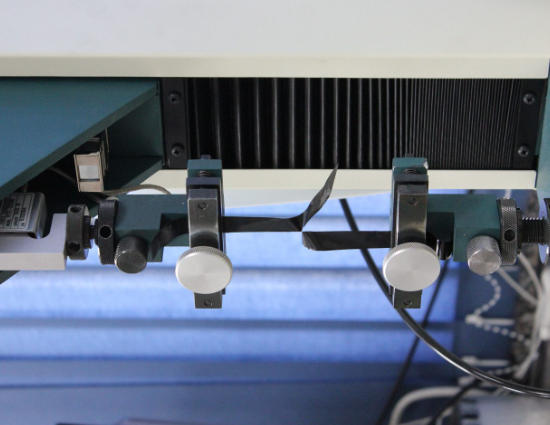

Tensile test
- Measures tensile strength, yield strength, elongation at break, and modulus using standards like ASTM D638 or ISO 527.[1]
- Color, UV, or filler Masterbatch can slightly reduce or significantly enhance modulus and strength depending on pigment type, filler nature, and dispersion quality.[4]
Flexural test (three‑point bending)
- Evaluates flexural strength and flexural modulus under bending, often using ISO 178.[3]
- High‑filler Masterbatch, such as talc or glass‑filled formulations, can sharply increase stiffness but may reduce flexibility if not correctly designed.[4]
Impact test
- Determines toughness by measuring the energy absorbed when a specimen is struck (Charpy or Izod for rigid plastics, dart drop for films).[2]
- Impact‑modifying Masterbatch (e.g., rubber‑modified systems) can greatly improve low‑temperature toughness and resistance to sudden loading.[9]
Hardness test
- Uses methods like Shore D, Rockwell, or indentation hardness to quantify surface resistance to penetration.[11]
- Filler or pigment Masterbatch often increases hardness and abrasion resistance, which is valuable for wear‑resistant parts, pipes, and profiles.[4]
Compression and creep tests
- Compression tests show how the material responds to compressive loads and permanent deformation under pressure.[2]
- Long‑term creep testing is crucial where Masterbatch‑filled plastics support static loads for years, such as structural components or packaging pallets.[9]
Thermal and environmental testing ensures that plastic and Masterbatch systems maintain their properties throughout the intended lifetime of the product.[11]
Heat deflection temperature (HDT) and Vicat softening point
- HDT measures the temperature at which a plastic under load deforms by a specified amount, while Vicat determines softening point under a small load.[2]
- Heat‑stabilizer Masterbatch and high‑temperature pigments are selected and tested to maintain stiffness and appearance at elevated temperatures.[11]
Differential scanning calorimetry (DSC) and thermal analysis
- DSC identifies melting temperature, glass transition temperature, crystallization behavior, and degree of crystallinity.[9]
- These results help optimize Masterbatch carrier selection and processing window, ensuring consistent crystallinity and dimensional stability in the final product.[11]
Thermal aging test
- Samples are exposed to elevated temperatures and oxygen for controlled times to simulate long‑term aging.[4]
- Antioxidant and UV‑stabilizer Masterbatch solutions are tested to minimize embrittlement, discoloration, and loss of mechanical strength.[11]
Flammability tests
- Flammability tests evaluate ignition behavior, flame propagation, and self‑extinguishing properties using established bench methods.[4]
- Flame‑retardant Masterbatch formulations are developed to meet industry fire standards without sacrificing mechanical and aesthetic performance.[11]
Chemical and solvent resistance tests
- Immersion tests expose plastics to chemicals, oils, fuels, or cleaning agents and measure changes in mass, dimensions, and mechanical properties.[9]
- Barrier‑enhancing and chemical‑resistant Masterbatch systems (e.g., special fillers or polymer modifiers) are adjusted based on these test results.[11]
Color and appearance are critical to brand recognition and user perception, so color Masterbatch testing is a key part of plastic material evaluation.[9]
Color and appearance measurement
- Spectrophotometers measure color difference (\(\Delta E\)) between target and production samples, ensuring color Masterbatch matches brand standards.[9]
- Tests under different illuminants and angles verify that pigments and Masterbatch remain stable under varied lighting conditions.[11]
Gloss and haze
- Gloss measurement evaluates surface shine, while haze measures light scattering through films and translucent parts.[9]
- Proper Masterbatch selection and dispersion control prevent unwanted haze and surface defects in high‑clarity applications such as packaging and lenses.[11]
Dispersion analysis
- Microscopic examination and specialized dispersion tests confirm that pigments and fillers from Masterbatch are uniformly distributed in the matrix.[11]
- Good dispersion minimizes weak points, improves mechanical performance, and prevents visible defects such as specks, streaks, and cloudiness.[4]
Melt flow index (MFI/MFR)
- Melt flow index measures polymer flow rate under standardized load, indicating how easily the material processes during extrusion or molding.[4]
- Masterbatch and additive packages are tuned to maintain the target MFI so that processors can run at stable cycle times and pressures.[13]
Dimensional stability and warpage
- Dimensional checks after molding or forming show how the material shrinks, warps, or distorts.[5]
- Filler Masterbatch and nucleating agents are evaluated to reduce shrinkage differences, improve flatness, and hold tight tolerances.[11]
Once the plastic and Masterbatch recipe is finalized, ongoing quality control ensures that every lot remains within specification. This is essential for global customers who require consistent performance across large volumes and multiple shipments.[11]
Incoming raw material inspection
- Verify base polymer grade, Masterbatch type, melt flow, moisture content, and appearance before production.[4]
- Keep reference Masterbatch samples and data sheets as baselines for comparison and traceability.[11]
In‑process monitoring
- Track melt temperature, pressure, screw speed, and output during extrusion or molding to maintain stable conditions.[3]
- Quick tests such as MFI, density, color measurement, and simple mechanical checks are performed on extruded strands or molded parts.[4]
Finished product testing
- For each production lot, run key tests (tensile, impact, color, dimensional checks, basic aging) against the approved specification.[11]
- Record Masterbatch batch numbers, let‑down ratios, and processing parameters to build full traceability for each shipment.[13]
Corrective actions and continuous improvement
- If any test result falls outside the control limits, adjust Masterbatch loading, processing temperature, or screw design and retest.[4]
- Statistical process control combined with robust Masterbatch design helps ensure long‑term stability and reduce scrap and complaints.[11]
Testing plastic material is not a single experiment but a complete framework that links application requirements, resin selection, Masterbatch design, processing, and rigorous laboratory evaluation. By combining mechanical, thermal, chemical, optical, and processing‑related tests, manufacturers can create highly customized Masterbatch‑modified plastics that reliably meet global performance and regulatory demands.[9][11]
A disciplined testing workflow—from raw material selection through to final product validation—ensures that each plastic compound and Masterbatch combination delivers the expected strength, durability, color accuracy, and stability in real‑world use. For a company focused on innovative plastic materials, this integrated approach turns testing into a powerful tool for product differentiation, customer trust, and long‑term competitiveness.[4][11]
Plastic materials and Masterbatch compounds should be tested during initial development, before scale‑up, and then regularly at defined intervals as part of quality control. Many manufacturers test each incoming raw material batch and every production lot of finished material to ensure ongoing consistency and compliance.[4][11]
When introducing a new Masterbatch, the most critical tests are tensile, impact, MFI, color measurement, and thermal stability because they show how the Masterbatch affects strength, processability, and appearance. Additional tests such as UV aging, chemical resistance, or flammability are selected depending on the end‑use application and regulatory requirements.[2][11]
Yes, Masterbatch can change mechanical properties, either positively or negatively, depending on its composition and dispersion quality. For example, glass‑filled or mineral Masterbatch can increase stiffness and hardness, while impact‑modifying Masterbatch can improve toughness but may slightly reduce stiffness.[2][4]
Color consistency is checked using spectrophotometers to measure color difference values between production samples and a master standard under controlled lighting conditions. If \(\Delta E\) exceeds the agreed limit, the color Masterbatch dosage, processing conditions, or pigment formulation is adjusted and retested.[9][11]
Melt flow index is important because it indicates how easily the plastic with Masterbatch flows during extrusion or molding, directly affecting cycle time, pressure, and part quality. Keeping MFI within a specified range ensures stable processing, consistent part weight, and uniform dispersion of Masterbatch in the final product.[13][4]
